Hello!

Atached you can see my config!.
The problem is that i cannot reach the apache www server from the wan(Inet). But it works from the lan side.

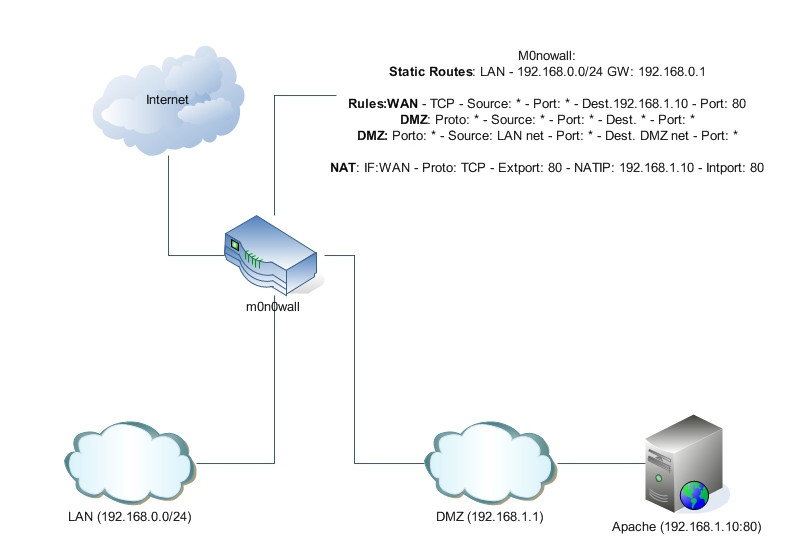

In the attached jpg. you can see all the rules,... I have allready changed the webgui port so the 80 port should work for the apache.

Have anybody a idea=?

thx

I don't think extport should be 80.

When people are connecting to your apache the source port will not be 80, only the destination port will be 80. The source port is randomly chosen by your web browser when you navigate to any given website.

Incoming Wan rule seems ok as

All ips on all ports to access 192.168.1.10 to port 80

Nat looks ok

Iface: Wan TCP ext port: 80 Nat IP: 192.168.1.10 Intport 80

Could it be your apache config? you can assign allowed ip address and denied, have a look in you apache.conf for reference

The other thing it could be is a local firewall setting on 192.168.1.10
