Hi,
first of all - sorry for my simple school english.

i have a problem with my m0n0wall. description of problem:

before i've installed m0n0wall i used fli4l on my router (intel-pc).

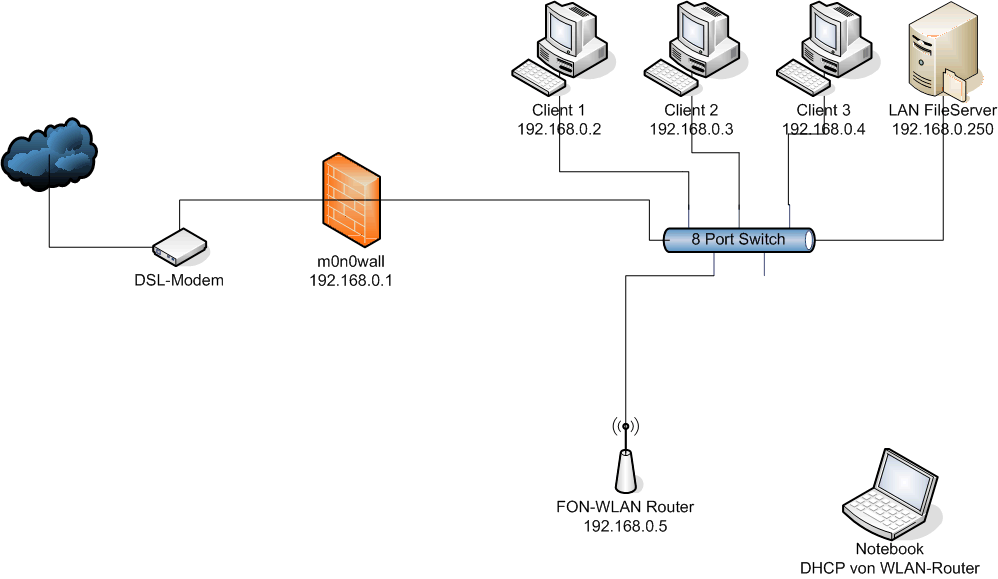

on my attachment you'll see the structure of my home LAN.
i have a fon WLAN router wich has the IP 192.168.0.5 in the x.x.0.0 net.

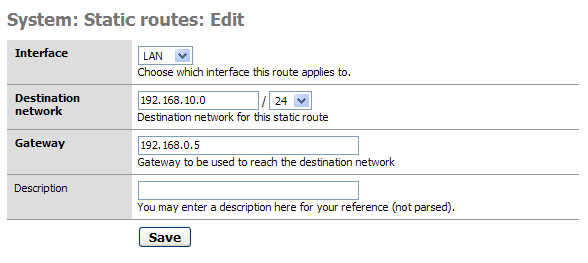

the wlan-net is x.x.10.0. before i've installed m0n0wall i can connect to all my other computers and my server. but now i can't reach the x.x.0.0 net from my notebook via WLAN! i've configured a statich route. (look at the pictures) but it still doesn't work. can somebody help me?
German thread: http://forum.m0n0.ch/index.php/topic,748.0.html

please help me!

thanx
ReD

* index.php.gif (38.79 KB, 998x579 - viewed 281 times.)

* index.php2.gif (8.79 KB, 588x263 - viewed 233 times.)

* index.php3.gif (5.73 KB, 573x84 - viewed 219 times.)
« Reply #1 on: July 18, 2007, 07:45:29 »
cmb *****
Posts: 851
Can you bridge the AP rather than routing or NAT'ing an additional subnet behind it? If you're going to have it on the same interface like that, that's what I would recommend.

Even if you want it on a different subnet, I would still recommend bridging the AP and using an OPT interface on m0n0wall.
